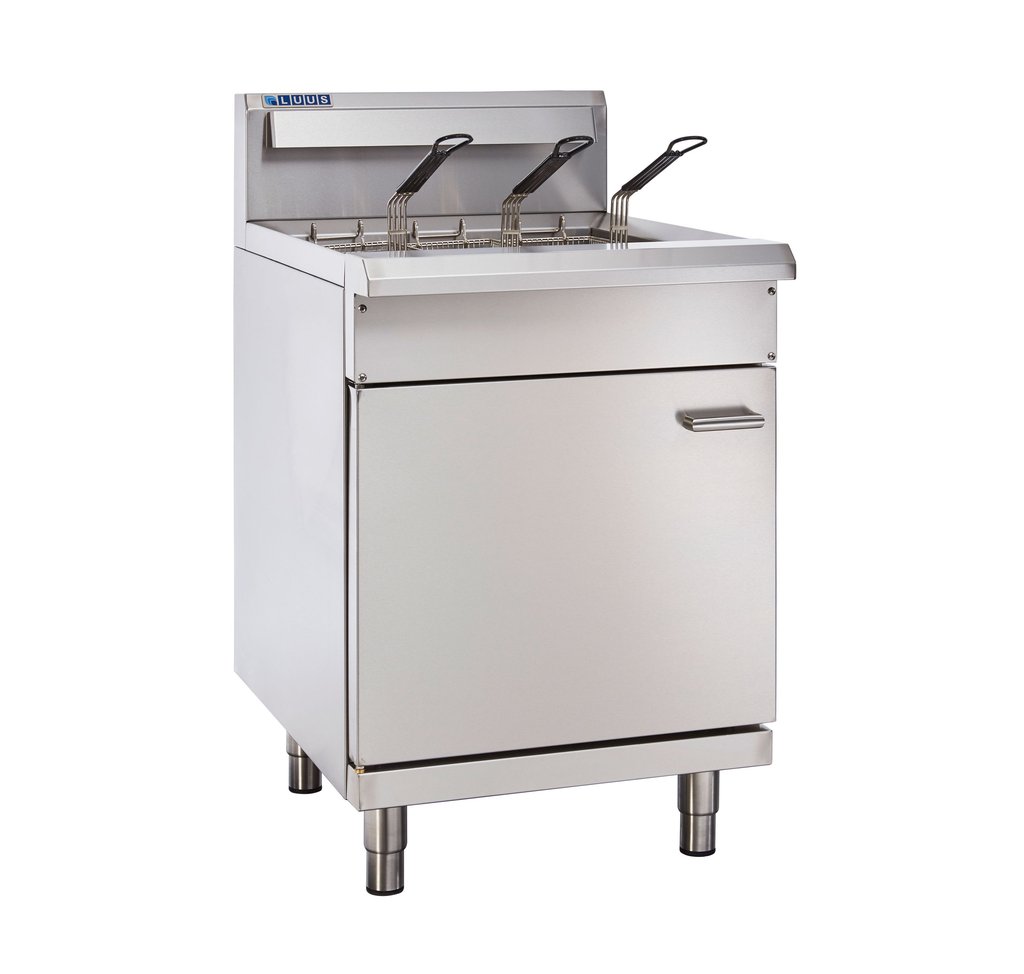

LUUS FV-45 3 baskets 3 Basket Single V-Pan Fryer 600mm
Original price was: $6,048.00.$4,536.00Current price is: $4,536.00.
450mm wide high performance twin basket V-pan fryer. Compact 800mm deep. Fenwal thermostat control, 304 stainless steel tank, piezo ignition, and FFD & high temp safety devices.
In 1998, Luus Industries was created from engineer Don Luu’s passion to build, innovate and improve. Housed within our purpose built facility in Melbourne’s West, we are proudly committed to the growth of manufacturing in Melbourne. Our agile approach to the entire design and manufacturing process allows us to build products tailored towards the Australian market. People, sustainability, the environment and our local community are at the heart of everything we do. From product design to the production line, Luus combine smart style with high performance. We always provide excellent service, because that’s all that matters. We welcome you to join us at our beautiful on-site demonstration kitchen, meet with our design engineers, or tour the manufacturing floor anytime.
FV series fryers feature an easy to clean stainless steel “V-pan” tank with a large cool zone. Premium components such as Fenwal thermostats improve accuracy and reliability, while efficient multi-jet burners optimise performance and recovery rates. Available in 450mm and 600mm wide models.
15 month ‘Platinum Warranty’
LUUS FV-45 3 baskets 3 Basket Single V-Pan Fryer 600mm
- Brand : LUUS
- Model : FV-45
- Dimensions : 450W x 800D x 1100H
- Weight : 72 Kg
- Status : Available
PRODUCT SPECIFICATION
V-Pan Fryer
• 120mj jet burner with pilot, FFD and piezo ignition
• Fenwal thermostat valve with /- 1° C tolerance
• Thermostat temperature range 150 – 200° C
• High temperature cut-out safety mechanism
• 304 grade 1.5mm stainless steel tank
• 25 litre tank capacity
• Includes 3 stainless steel fryer baskets
• 0.9mm stainless steel perforated fish/base plate
• Tank drainage valve at bottom front of unit
Overall Construction
• Heavy duty construction
• Constructed 0.9mm 304 stainless steel door
• High density Fiberfrax Durablanket insulation around tank
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Includes stainless steel legs
• Modular Professional series design
Dimensions
• 600mm x 800mm x 1100mm H
• Working height 900mm
• Weight 83kg
• Packed dimensions 640mm x 860mm x 1260mm H
• Packed weight 103kg
Connections
• Gas 3/4” BSP male
• Gas 225mm from right, 50mm from rear, 210mm from floor
• In-built Natural gas regulator
• Drain 1 1/4” BSP male
• Drain 300mm from left, 70mm from front, 385mm floor
Cleaning & Servicing
• Easy access to all parts & components from front
• V-pan easy-to-clean design
• Rear basket support bar
• Removable baskets and inserts
